1.2Ghz 1.5W Wireless Video Transmitter and Receiver 1.2g Fpv Vtx with 8 Channels

Rs.6,872.57
👀 0 people are viewing this product right now
🔥 Sold 0 items in the last 7 days

SPECIFICATIONSBrand Name: KIMPOK TECHNOLOGYCertification: CECompatible Drone Brand: GoProDrones Accessories Type: Data Transmission SystemFps: 640,30FpsHign-concerned Chemical: NoneI/O Interface: 3-in-1 PortMax. Transmission Distance: 40KMMin. Latency (end-to-end): 0MSModel Number: DS-12G5WmiOperating Temperature...

Color:

Receiver 1.2g
VTX 1.2g 1.5W
VTX VRX combo
  • In stock

SPECIFICATIONS

Brand Name: KIMPOK TECHNOLOGY

Certification: CE

Compatible Drone Brand: GoPro

Drones Accessories Type: Data Transmission System

Fps: 640,30Fps

Hign-concerned Chemical: None

I/O Interface: 3-in-1 Port

Max. Transmission Distance: 40KM

Min. Latency (end-to-end): 0MS

Model Number: DS-12G5Wmi

Operating Temperature Range (°C): 10-50

Origin: Mainland China

Package: Yes

Product Dimensions: 115*80*21mm

Resolution: 720P

Size: 115*80*21mm

Transmitter Power (EIRP): 1.6watt

Video Format: AV

Weight: 82g

channel: 8 channels

frequency: 1.2G

1.2ghz 1.5w wireless video transmitter and receiver 1.2g fpv vtx with 8 channels


Description:


Transmitter technology is exquisite, special metal is more conducive to heat dissipation, long-term work.The signal input is a universal av interface, which is easily compatible with all traditional av interfaces, such as cameras, vcds and dvds.


ItIsNotOnlyAProfessionalWirelessCctvTransmitterAndReceiverForCctvSecurityProjects,ButCanThe sameBeUsedForSimultaneousTransmissionOfVideoAndDataSignalsInFpvSystem,Drones,Remote-controlledAircraft/helicopters,UnmannedEquipmentCar.

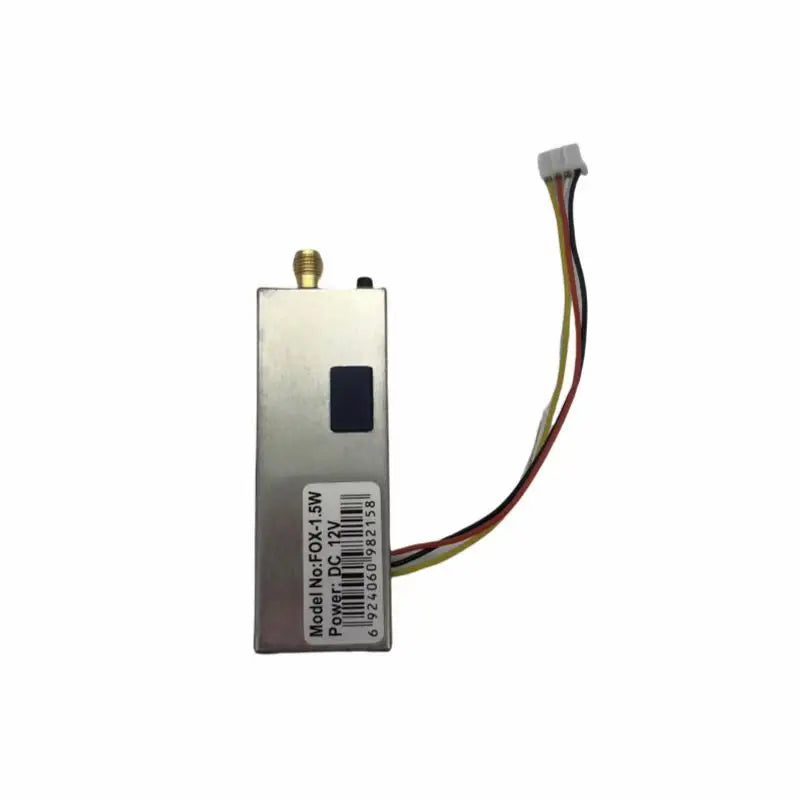

Transmitter parameter:


Frequency

1.1ghz/1.2ghz/1.3ghz

Output power

1.5w

Power input

Dc 12v

Channel

8 channels

Frequency band

1080mhz, 1120mhz, 1160mhz, 1200mhz, 1240mhz, 1280mhz, 1320mh, 1360mhz

Dimension

73*41*14mm

Weight

82g

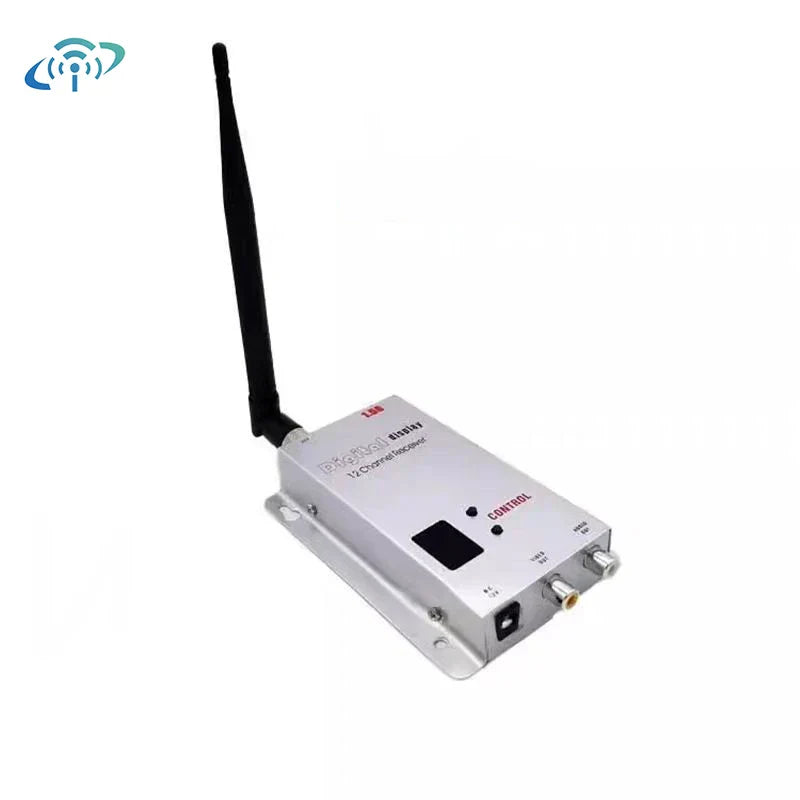

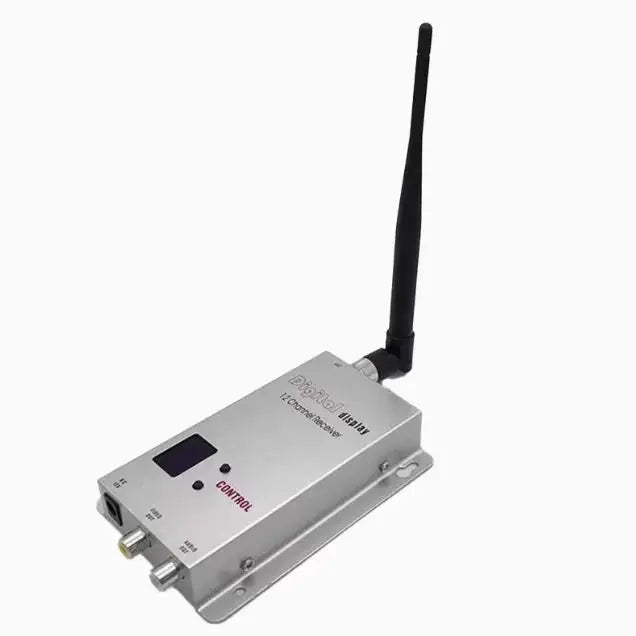

Receiver parameter:


Frequency

1.2ghz

Channel

12 channels

Sensitivity

-90dbm

Working voltage

Dc 12v

Current consumption

260ma

Weight

115g

Size

115*80*21mm

Accessories

Receiver, antenna, av cable
